MyID iOS SDK

Table of contents

Getting started

1.1 Before you begin

Install or update Xcode to its latest version. The SDK supports iOS 12+. The SDK has been built on Xcode 14.1 using Swift 5.8

1.2 Add the SDK dependency

Using Swift Package Manager

The SDK is available with Swift Package Manager, and you can include it in your project by adding the following package repository URL:

Swift
dependencies: [
    .package(url: "https://gitlab.myid.uz/myid-public-code/myid-ios-sdk.git", .branch("master"))
]

Using Cocoapods

The SDK is available on Cocoapods and you can include it in your projects by adding the following to your Podfile:

pod 'MyIdSDK', '~> 2.3.3'

Run pod install to get the SDK.

Manual installation

1.3 Permissions

The SDK uses the device camera. You're required to have the following keys in your application's Info.plist file:

  • NSCameraUsageDescription
<key>NSCameraUsageDescription</key>
<string>Required for document and facial capture</string>

Note: All keys will be required for app submission.

Usage

import UIKit
import MyIdSDK

class ViewController : UIViewController {

    override func viewDidLoad() {
        super.viewDidLoad()
    }

    private func startMyId() {
        let config = MyIdConfig()
        config.clientId = /* Your Client ID */
        config.clientHash = /* Your Client Hash */
        config.clientHashId = /* Your Client Hash ID */
        config.passportData = passportData
        config.dateOfBirth = dateOfBirth
        config.buildMode = MyIdBuildMode.PRODUCTION

        MyIdClient.start(withConfig: config, withDelegate: self)
    }
}

extension ViewController: MyIdClientDelegate {

    func onSuccess(result: MyIdResult) {
        if let code = result.code {
            print(code)
        }

        if let image = result.image {
            print(img)
        }
    }

    func onError(exception: MyIdException) {
        print(exception.code)
        print(exception.message)
    }

    func onUserExited() {
        print("User exited")
    }
}

2.1 Options

Option Notes Default
clientId Client ID Provided by MyID sales team. Mandatory, if using entryType = MyIdEntryType.AUTH
clientHash Client Hash Provided by MyID sales team. Mandatory, if using entryType = MyIdEntryType.AUTH
clientHashId Client Hash ID Provided by MyID sales team. Mandatory, if using entryType = MyIdEntryType.AUTH
passportData Passport serial number or PINFL data Optional
dateOfBirth Date of birth in. Format: dd.MM.yyyy Optional
minAge To set a specific minimum age to use MyID service 16
sdkHash 32 characters long string (Note 1.2) Optional
externalId 36 characters long. Should match with UUID4 regex (Note 1.3) Optional
threshold The value can be in the range of 0.55 - 0.99 0.55
buildMode Build mode (Note 1.4) MyIdBuildMode.PRODUCTION
entryType Customizing the SDK Entry types (Note 1.5) MyIdEntryType.AUTH
residency To set a specific resident type MyIdResidentType.RESIDENT
locale To set a specific locale MyIdLocale.UZ
cameraShape To set a specific camera shape (Note 1.6) MyIdCameraShape.CIRCLE
resolution To set a specific camera resolution MyIdResolution.RESOLUTION_480
withPhoto Return SDK face image false

Note 1.1. You can customize the screen for entering passport data and date of birth in your application, in which case you can pass these parameters during initialization to the SDK, otherwise the SDK requires the input of passport data and date of birth for user identification.

Note 1.2. If the sdkHash is empty, blank or string with length other than 32 has been provided, we will continue showing the credentials screen.

Note 1.3. If the externalId is not empty, has a length of 36 characters and corresponds to the regular expression UUID4, we will display a recommendation screen in case the sdk detects a blurry photo.

Note 1.4. MyIdBuildMode contains DEBUG and PRODUCTION modes.

  • DEBUG is used to sandbox.
  • PRODUCTION is used to production.

Note 1.5. MyIdEntryType contains AUTH and FACE types.

  • AUTH is used to identify the user through the MyID services.
  • FACE is used to detect a face and returns a picture (bitmap).

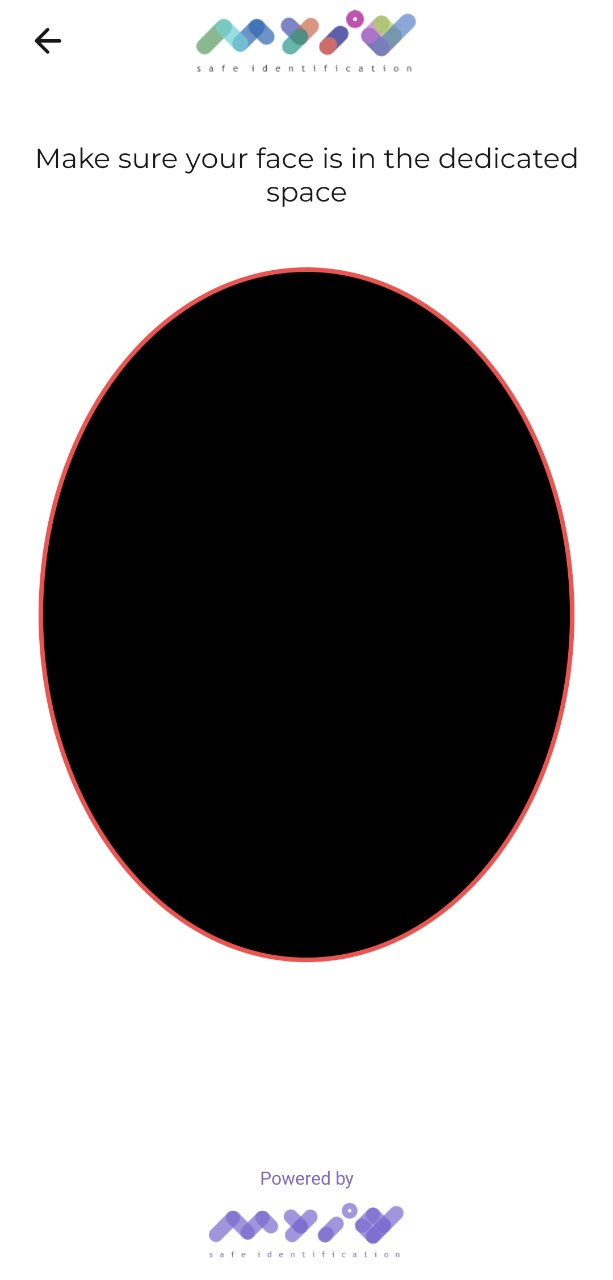

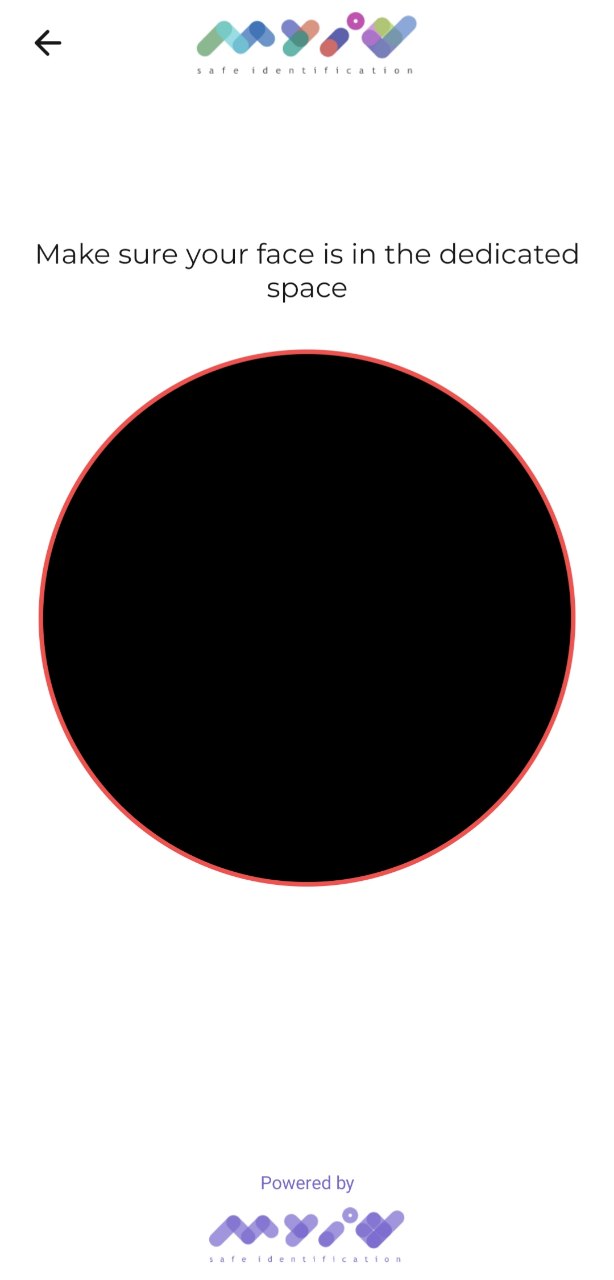

Note 1.6. MyIdCameraShape contains CIRCLE and ELLIPSE types.

2.2 MyIdClientDelegate

extension ViewController: MyIdClientDelegate {

    func onSuccess(result: MyIdResult) {
        // Get face bitmap and result code

        if let code = result.code {
            print(code)
        }

        if let image = result.image {
            print(img)
        }
    }

    func onError(exception: MyIdException) {
        // Get error message and code

        print(exception.code)
        print(exception.message)
    }

    func onUserExited() {
        // User left the SDK
    }
}
Method Notes
onSuccess MyIdResult contains information about the face captures made during the flow, result code and comparison value.
onError Some error happened. MyIdException contains information about the error message and code
onUserExited User left the SDK flow without completing it.

SDK error codes

The error code in the following list may appear during the call of SDK. The list below is for your reference.

Code Error message
2 Паспортные данные введены неправильно

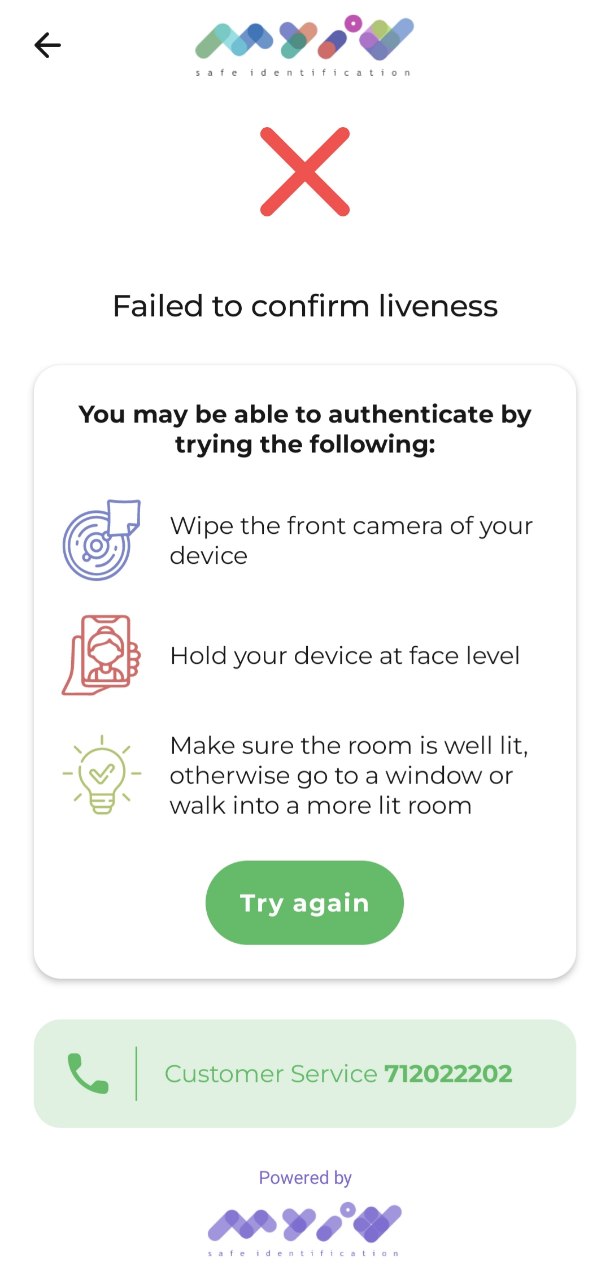

3 Не удалось подтвердить жизненность
4 Не удалось распознать
5 Внешний сервис недоступен или работает некорректно
6 Запрашиваемый пользовател скончался
7 Фото с ресурсов не получено
8 Внутренняя ошибка MyID
9 Срок выполнения задачи истек
10 Срок ожидания задачи в очереди истек
11 Сервис MyID не может обработать запрос. Попробуйте повторить позже
12 Сервис MyID не может обработать запрос. Попробуйте повторить позже
13 Сервис MyID не может обработать запрос. Попробуйте повторить позже
14 Не удалось подтвердить жизненность. Некорректная фотография
15 Сервис MyID не может обработать запрос. Попробуйте повторить позже
16 Сервис MyID не может обработать запрос. Попробуйте повторить позже
17 Не удалось распознать. Некорректная фотография
18 Сервис проверки жизненности не может обработать запрос
19 Сервис распознования не может обработать запрос
20 Размытая фотография
21 Лицо не полностью изображено
22 Обнаружено несколько лиц
23 Представленное изображение в градациях серого, требуется цветное изображение
24 Обнаружены затемненные очки
25 Тип фотографии не поддерживается
26 Глаза закрыты либо не видны
101 Непредвиденная ошибка
102 Доступ к камере запрещен
103 Ошибка при получении данных с сервера
120 Размытое фото обнаружено в SDK
